In modern electronic warfare environments, standard UAV navigation systems represent a critical single point of failure. Adversaries actively target these systems with powerful interference. Unmanned platforms require continuous positioning data to execute complex missions safely. If you rely solely on inertial navigation systems during prolonged GPS/GNSS denial, you will quickly face unacceptable positional drift. You cannot risk losing control of your assets in contested airspace. Transitioning from vulnerable commercial receivers to hardened GNSS anti-jamming technology requires strategic planning. You must balance complex size, weight, and power (SWaP) constraints with mission-critical survivability. This guide outlines exactly how you can evaluate, select, and integrate these solutions for autonomous platforms. We explore current operational threats, hardware categories, and practical integration hurdles. By the end of this article, you will understand how to protect your high-value payloads against evolving electronic threats effectively.
UAV navigation protection requires moving beyond basic filtering to multi-element Controlled Reception Pattern Antennas (CRPA).
Evaluating a GNSS anti-jamming antenna requires strict assessment of your platform's SWaP (Size, Weight, and Power) limitations versus the anticipated Jamming-to-Signal (J/S) threat levels.

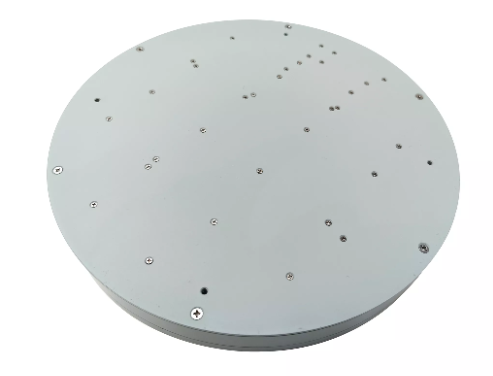

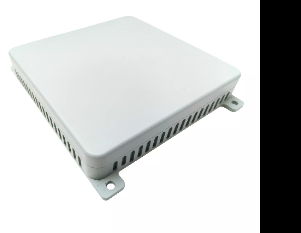

Advanced solutions, such as a 16-element CRPA antenna, provide superior null-steering and beamforming capabilities but introduce specific integration challenges regarding payload aerodynamics and power draw.
Successful implementation demands rigorous field-testing against dynamic, multi-directional interference, not just static lab simulations.
Standard GNSS signals are exceptionally weak. They reach the Earth's surface at roughly -130 dBm. This power level sits below the ambient radio frequency background noise of our planet. Low-cost, commercially available jammers can easily overpower these faint signals. Adversaries often deploy small, portable transmitters to blanket large operational areas with overlapping radio frequency noise. A simple 10-watt jammer can disrupt unprotected receivers for dozens of miles.
Loss of signal creates an immediate operational crisis. Your flight computer must then rely entirely on its inertial navigation systems (INS). INS solutions always suffer from cumulative positional drift over time. A high-quality aerospace INS might drift only a few meters per minute. Lower-tier sensors will drift hundreds of meters in the exact same timeframe. This positional error destroys payload targeting accuracy. You also lose the precise timing synchronization required for encrypted communications. Tactical data links depend heavily on microsecond timing. This cascade of failures leads to forced mission aborts. In worst-case scenarios, it results in complete platform loss.
Software-based mitigation and basic RF filtering are insufficient for contested military airspace. Industry experts call this the Bottom of Form (BoF) reality check. Basic bandpass filters only remove out-of-band noise. They cannot stop in-band jamming where the enemy broadcasts directly on the L1 or L2 frequencies. Genuine Military anti-jamming requires true hardware-level spatial processing. You need physical antenna arrays that isolate and nullify threat sources before those signals ever reach the internal receiver. Relying on software processing alone leaves your platform entirely exposed to modern electronic attack.
Engineers generally divide mitigation hardware into two distinct categories. You must understand both architectures to make informed procurement decisions for your fleet.
FRPA systems use physical choke rings paired with advanced software filters. The hardware physically blocks signals arriving from the horizon. Most ground-based jammers transmit from very low elevation angles. The choke ring design prevents these low-angle signals from hitting the active antenna element.
These systems offer low size, minimal weight, and low power consumption. They are highly cost-effective for benign environments. However, they remain highly vulnerable to elevated or airborne jammers. If an enemy drone carrying a jammer flies above your platform, the choke ring provides zero protection. FRPA systems are insufficient for high-threat theater operations.
Here are the common limitations of basic mitigation approaches:
Horizon masking: Physical blocks only work against ground threats, leaving your platform exposed to airborne emitters.
Filter saturation: Simple RF filters cannot remove white noise sitting directly on top of the satellite frequency band.
Software limitations: Digital signal processing inside a standard receiver lacks the spatial awareness to separate overlapping signals.
A CRPA utilizes multiple distinct antenna elements on a single array. The system dynamically alters its own reception pattern in real-time. It actively monitors incoming radio frequency energy across the spectrum. The internal processor creates spatial "nulls" in the exact direction of the interference. It simultaneously enhances genuine satellite signals arriving from other safe angles.
CRPAs represent the industry standard for resilient UAV operations. They provide true three-dimensional spatial filtering. The technology is scalable based entirely on the number of antenna elements deployed. More elements equal greater threat mitigation capacity in dense EW environments.
Table: Comparison of GNSS Antenna Solutions
System Architecture | Mitigation Mechanism | SWaP Profile | Operational Suitability |
|---|---|---|---|
FRPA + Filtering | Physical horizon blocking and bandpass filters | Low Size, Low Weight, Low Power | Benign environments, Group 1/2 UAVs |
4-Element CRPA | Dynamic null-steering (handles up to 3 jammers) | Moderate Size, Moderate Power | Contested environments, Group 3 UAVs |
16-Element CRPA | Advanced nulling and beamforming (15 jammers) | High Size, High Power draw | Severe EW threats, Group 4/5 UAVs |
Selecting the right hardware requires a strict evaluation matrix. You must look far beyond basic marketing brochures to ensure mission survivability.
You need to know exactly how much jamming power the system can mitigate. Engineers measure this as the Jamming-to-Signal (J/S) ratio. The system must maintain a Stable navigation signal during active, high-power electronic attacks. Always compare vendor claims against verified testing data. A robust GNSS anti-jamming antenna provides empirical mitigation metrics in decibels (dB). Look for systems offering robust broadband interference rejection to handle modern sweeping jammers.
Size and weight are essential metrics for smaller Group 2 and 3 UAVs. Payload capacity is heavily restricted on these tactical platforms. You cannot install a bulky array on a lightweight reconnaissance drone. The power budget is equally critical. Active null-steering requires continuous computational power. You must evaluate the thermal dissipation of the Antenna Electronics (AE) unit. Ensure your drone's alternator can handle the steady power draw without compromising other flight systems.
Ensure your hardware supports multiple satellite constellations simultaneously. It should track GPS (M-Code), Galileo (PRS), and GLONASS without degradation. This multi-frequency approach provides vital mission redundancy. If adversaries successfully target a specific GPS frequency band, your receiver simply shifts to Galileo or another available constellation signal.
You must understand the distinct difference between these two threats. Jamming floods the receiver with overpowering noise to cause a signal loss. Spoofing tricks the receiver with false location data to hijack the platform. Clarify that while a CRPA excels at anti-jamming, anti-spoofing requires complementary layers. You need cryptographic signal-authentication layers to verify data authenticity continuously.
As unmanned aerial vehicles grow in size and strategic importance, their protection systems must scale accordingly to meet elevated threat profiles.
The number of jammers a CRPA can simultaneously nullify follows a rigid mathematical rule. It generally equals N-1, where N represents the total number of antenna elements. A standard 4-element CRPA can handle a maximum of 3 simultaneous jammers. If a fourth jammer appears in the theater, the processing system becomes overwhelmed.
Highly contested environments present incredibly complex EW threats. You will face multi-directional and fast-moving interference sources from both ground and air. A 16-element CRPA antenna provides massive computational headroom. It can successfully isolate and nullify up to 15 distinct jamming sources simultaneously. This ensures uninterrupted operation even when flying directly over heavily fortified enemy territory.
These massive multi-element arrays go beyond simple null-steering. They do not just block bad signals. Advanced 16-element systems utilize dynamic beamforming techniques. They actively combine the phase of signals from multiple elements to amplify the true satellite signals constructively. This maximizes the signal-to-noise ratio. Your receiver gets a louder, cleaner signal even in harsh atmospheric conditions or heavy foliage.
These advanced arrays are heavy and require significant continuous power. They are best suited for Group 4 and 5 UAVs. Medium Altitude Long Endurance (MALE) and High Altitude Long Endurance (HALE) platforms have ample payload capacity. They can easily accommodate the larger physical footprint and thermal exhaust of a sophisticated 16-element array.
Purchasing the right hardware is only the first step. Integrating it into an autonomous platform introduces significant aerospace engineering challenges.
The physical placement of a multi-element antenna heavily impacts fuselage aerodynamics. A large radome creates parasitic drag. This drag reduces fuel efficiency and overall flight time. You must evaluate recessed or conformal mounting options closely. Work directly with aerospace engineers to smooth the airflow. Proper physical integration ensures reliable UAV navigation protection without crippling the drone's flight efficiency.
The physical distance between the antenna array and the Antenna Electronics (AE) dictates overall system efficiency. Long coaxial cables introduce radio frequency loss. Poor cable shielding allows ambient interference from the drone's own motor to leak into the system. Phase-matched cables are strictly required for CRPA systems to function correctly. This adds measurable complexity and rigidity to the internal routing process.
Lab-based simulated jamming provides a necessary baseline for evaluation. However, real-world procurement demands far more operational rigor. You cannot trust anechoic chamber results alone. You must evaluate the integrated system in live-sky environments.
To ensure successful implementation, follow this comprehensive testing framework:
Baseline Characterization: Test the UAV's native GNSS reception in a clean, zero-interference environment to establish benchmark signal-to-noise levels.
Anechoic Chamber Simulation: Subject the integrated platform to static interference vectors to verify basic nulling algorithms and phase matching.
Dynamic Flight Testing: Execute aggressive flight maneuvers while banking and rolling to ensure antenna blind spots do not expose the receiver to ground-based jammers.
Multi-Emitter Field Trials: Fly the platform through a live open-air EW test range featuring multiple overlapping threat emitters.
Securing autonomous military platforms requires graduating from vulnerable FRPA systems to dynamic, multi-element CRPA architectures. Commercial receivers are simply too fragile for the modern electronic battlefield. The choice between a compact 4-element system and a robust 16-element array depends entirely on your platform. You must weigh specific SWaP limits against the theater's unique threat profile.
Do not rely on marketing spec sheets alone during the procurement process. Request a rigorous SWaP-compatibility analysis from vendors early in the design phase. Demand empirical J/S mitigation data from live testing. Ensure this data matches your specific operational altitude and mission parameters. Conduct extensive live-sky testing to verify integration success before deploying any platform into contested airspace.
A: No system defies physics. High-power jamming in extremely close proximity can saturate any receiver front-end. However, advanced CRPA systems drastically shrink the effective radius of enemy jammers. They keep the navigation signal stable until the UAV can maneuver out of the immediate threat zone.
A: Active phased-array processing requires continuous computational power. Engineers must account for a continuous draw in the UAV's power budget. This typically ranges from 10 watts to over 30 watts, depending entirely on the element count and internal processor complexity.
A: Not always. Many CRPA systems use inline Antenna Electronics (AE) that output a clean, mitigated RF signal to legacy receivers. However, pairing a modern M-Code receiver with a CRPA yields the highest level of security, encryption, and overall operational performance.
