Navigation signal never lost! SX003-InfoxDome-ONE-FPV shines!

Today, we bring you a new product that redefines the standard for miniaturized positioning devices for FPV and industry application developers seeking ultimate performance – the SX003-InfoxDome-ONE-FPV high-interference resistance positioning module.

This product GNSS full-band reception and combines navigation algorithms to achieve high-precision positioning and interference resistance. It can effectively handle harsh environments such as satellite signal interference, occlusion, andath, providing continuous, real-time, and reliable high-precision positioning results and reliable interference resistance.

Product Features: Full constellation support, single point positioning accuracy

The module supports the BDS (BeiDou), GPS, GLONASS, and Galileo, the four major global navigation satellite systems, achieving full constellation signal. In an ideal interference-free environment, it can provide a horizontal 1.5-meter, elevation 2.5-meter single-point positioning accuracy, meeting the needs of the majority of high-precision applications.

Product Performance: Uncompromising performance in interference environments

In today's increasingly complex electromagnetic environment, pure accuracy is no longer enough to meet the challenges. The core weapon of the SX003-InfoxDome-ONE-FPV is its professional-grade anti-interference capability of up to 65dBc. Even under interference, the horizontal and vertical positioning accuracy can still be maintained within a reliable range of ≤10 meters allowing you to accurately pinpoint the position of your aircraft in extreme conditions.

Product Size: Extremely small form factor, ultra-simple integration

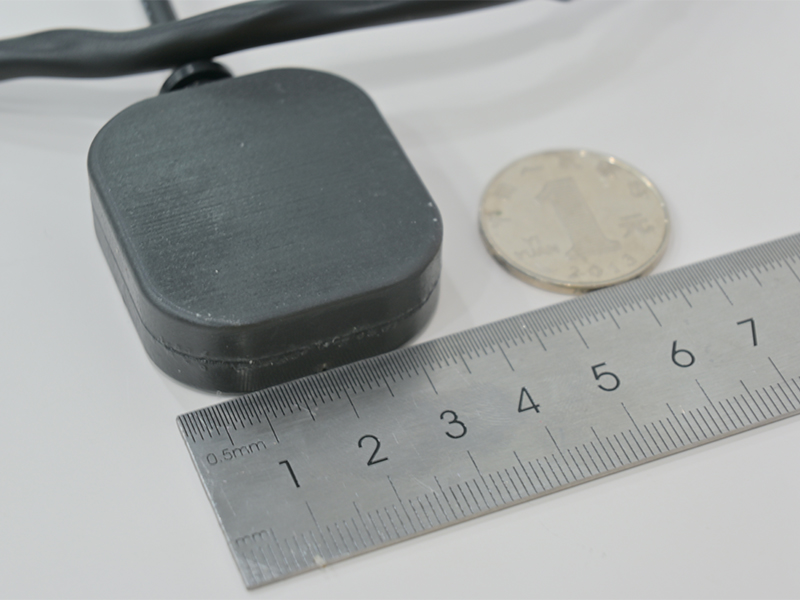

With a diameter of only46mm and a thickness of 18mm, the overall weight is controlled at 40g, which hardly affects the dynamic performance of the aircraft. The working current≤60mA@5V ensures worry-free endurance for long-term operation. It is so compact that it can be hidden in any aircraft design yet contains a powerful positioning.

First-time positioning time: Immediate lock, always ready

Cold start time: ≤40s;

Hot start time: ≤5;

Loss of lock reacquisition time: ≤2s

Shorten the first-time positioning time and improve the user experience. No matter where you are you can get the fastest and most reliable satellite signal lock.

Say goodbye to signal loss and fly freely

The SX003-InfoxD-ONE-FPV is more than just a positioning module; it is a "reliable positioning solution" designed for challenging complex environments. It condenses laboratory-level anti-ference technology into the palm of your hand, ensuring the satellite navigation anti-interference needs of every drone.
