TX-009Pro-8CH-G1-WG-DT Glonass GPS Anti-jamming Antenna


Availability:

Quantity:



Inquire Add to Basket

TX-009Pro-8CH-G1-WG-DT is a 8 chennels-4 elements compact, integrated anti-jamming terminal for satellite navigation, designed for civilian drones and industrial use.

Product Description

Overview

The TX-009Pro-8CH-G1-WG-DT is an 8-channel, 4-element compact integrated satellite navigation anti-jamming terminal, purpose-built for civilian drones and industrial applications. As a high-performance CRPA anti-jamming antenna solution, it addresses core pain points of signal loss and positioning inaccuracy caused by complex electromagnetic interference in industrial and aerial scenarios. Engineered with in-house anti-jamming algorithms and self-manufactured antenna arrays, this system delivers reliable, high-precision navigation for industrial users, drone manufacturers, and system integrators operating in interference-prone environments.

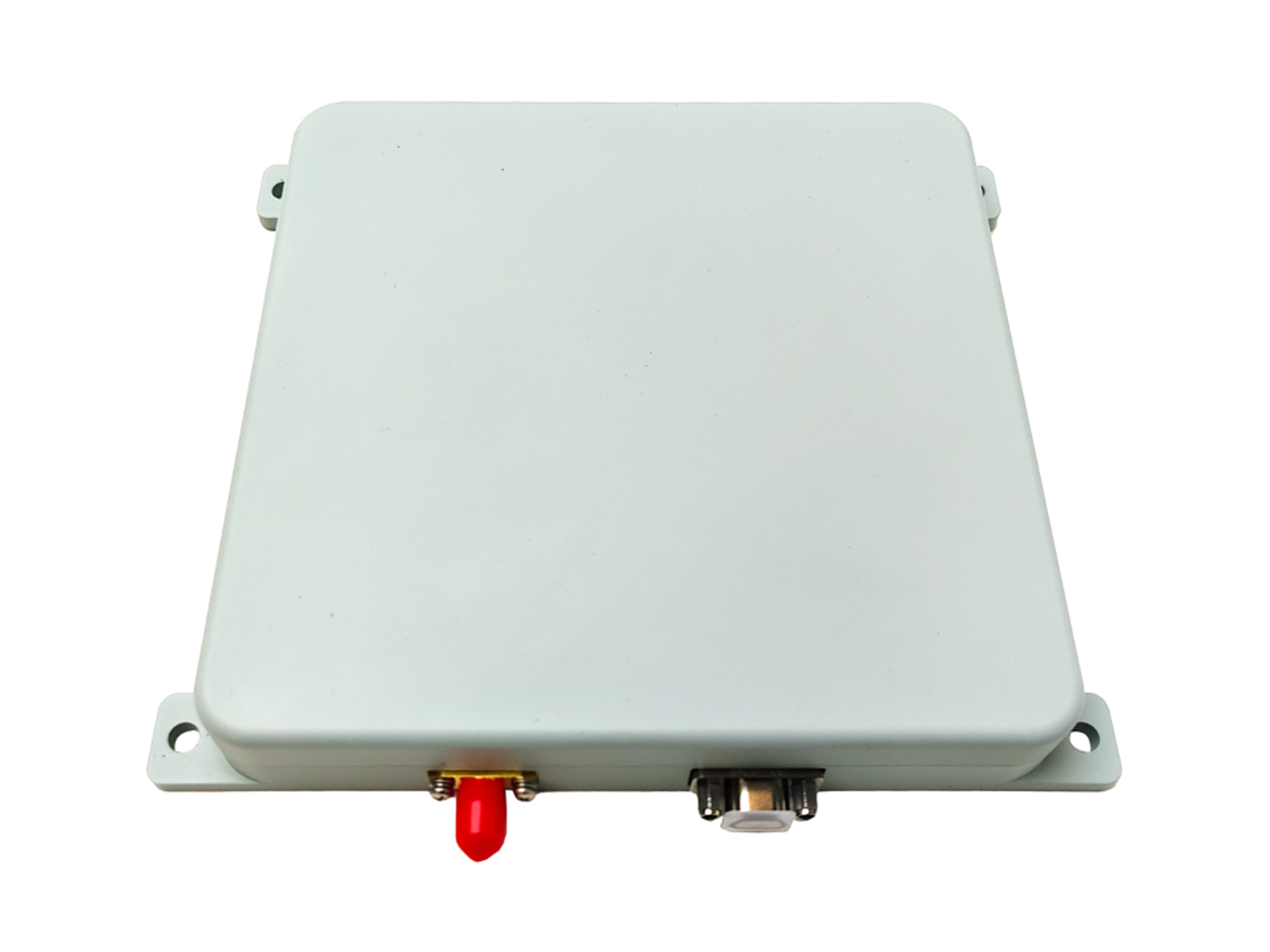

TX-009Pro-8CH-G1-WG-DT

Customization & Integration Support

We offer end-to-end customization and integration support for industrial users and system integrators. Our engineering team can adjust antenna array configurations, optimize anti-jamming algorithms for specific frequency bands, customize hardware interfaces, and provide firmware updates to match your project’s unique requirements. We also offer on-demand technical support to streamline integration into your existing industrial navigation systems, reducing development cycles and deployment costs.

Product Advantage

Core Advantages & Differentiators

Industry-Leading Triple-System Triple-Frequency Anti-Jamming Performance

This 8CH TX-009Pro-G1 Antenna Navigation System supports triple-frequency reception across BDS-B1, GPS-L1, and GLONASS-G1 satellite systems, enabling simultaneous wideband interference resistance for all three constellations. It delivers exceptional anti-jamming metrics, with an interference-to-signal ratio (ISR) of ≥105dBc for a single jamming source, and ≥95dBc for up to three jamming sources. With full 0°360° azimuth and -90°90° pitch anti-jamming airspace coverage, it eliminates blind spots in complex industrial and urban environments.

Ultra-Compact, Low-Power Design for Mobile Industrial Deployment

Optimized for size and weight constraints of aerial and portable industrial equipment, the terminal features a compact form factor of 150mm × 130mm × 21mm, with a total weight of ≤400g. It operates at a recommended 12V input, with power consumption ≤12W at room temperature, making it ideal for battery-powered devices such as multi-rotor and fixed-wing drones, without compromising on runtime or payload capacity.

In-House Developed Technology for Customized Reliability

Powered by a proprietary anti-jamming algorithm and self-produced CRPA high-performance anti-jamming antenna, this system can be tailored to match unique industrial application requirements. It delivers stable RF output with an in-band power of -70~-60dBm and 50 ohms output impedance, ensuring seamless compatibility with mainstream industrial navigation and control systems.

Industrial Applications & Use Cases

This UAV anti-jamming antenna system is suited for a wide range of industrial scenarios requiring stable satellite navigation, including civilian drone operations for aerial mapping, power line inspection, oil and gas pipeline patrol, and logistics delivery in urban and industrial interference zones. It also supports precision agriculture auto-steering machinery, geophysical exploration portable navigation terminals, and maritime/inland waterway positioning for small vessels and offshore operation equipment.

Technical Parameters

FAQ

CRPA High performance anti-jamming antenna UAV anti-jamming antenna anti-jamming antenna for drones

Submit Customization Requirement

Welcome to submit the customized requirement form, which includes fields such as requirement description, product parameters, application scenarios, etc. Once we receive it, we will contact you as soon as possible!

CONTACT US

Anti-interference capability:	ISR:Single≥105dBc
	Three≥95dBc
Anti-interference airspace\orientation:	0°~360°, pitch:-90°~90°
Volume:	150mm x130mm x21mm
Weight:	≤ 400g
Recommend Input Voltage:	12V
Power consumption:	≤12w（room temperature)
RF output description:
Output signal frequency:	1561.098MHz\1575.42MHz\1602MHz
In-band power of output signal:	-70~-60dBm
Output impedance：	50 ohms
