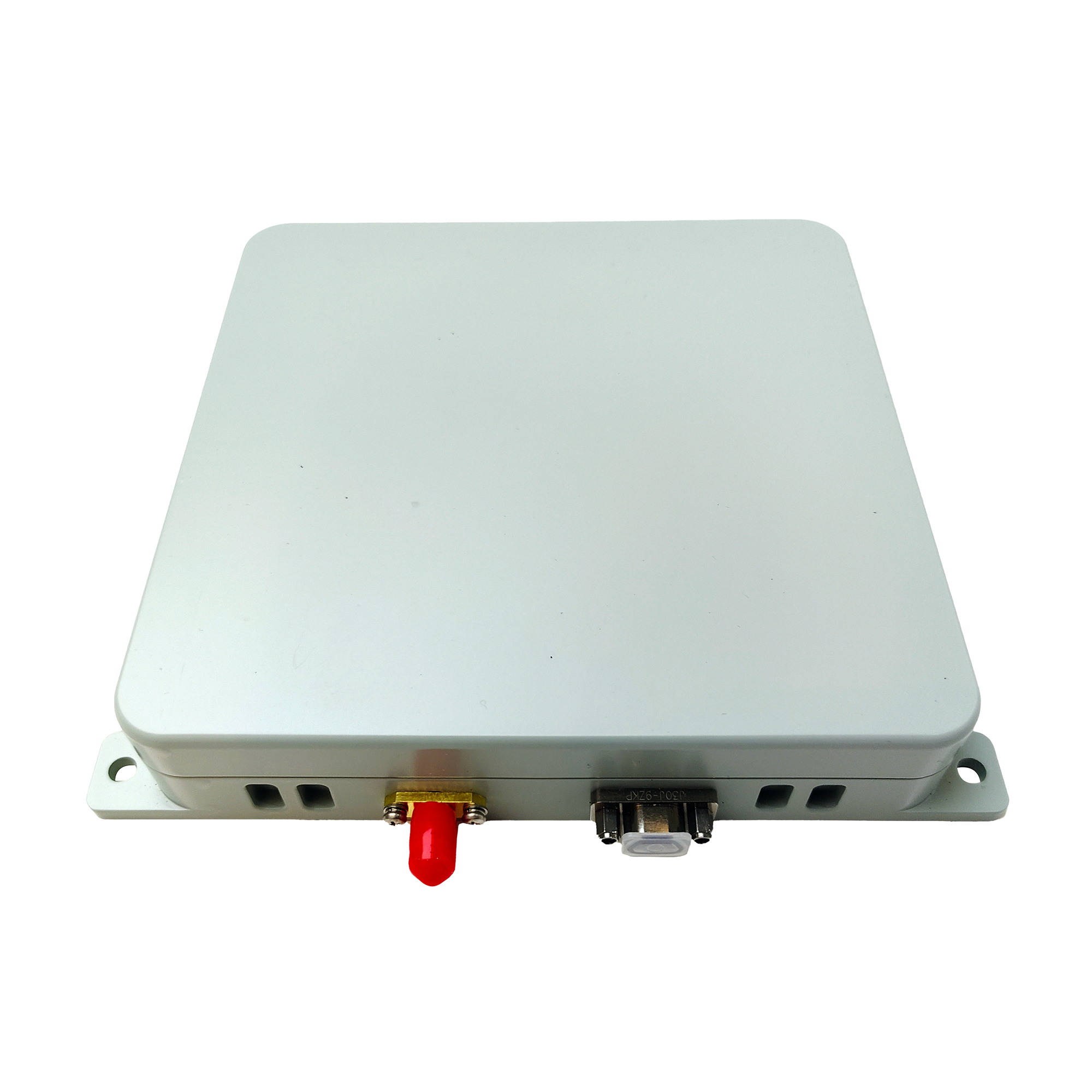

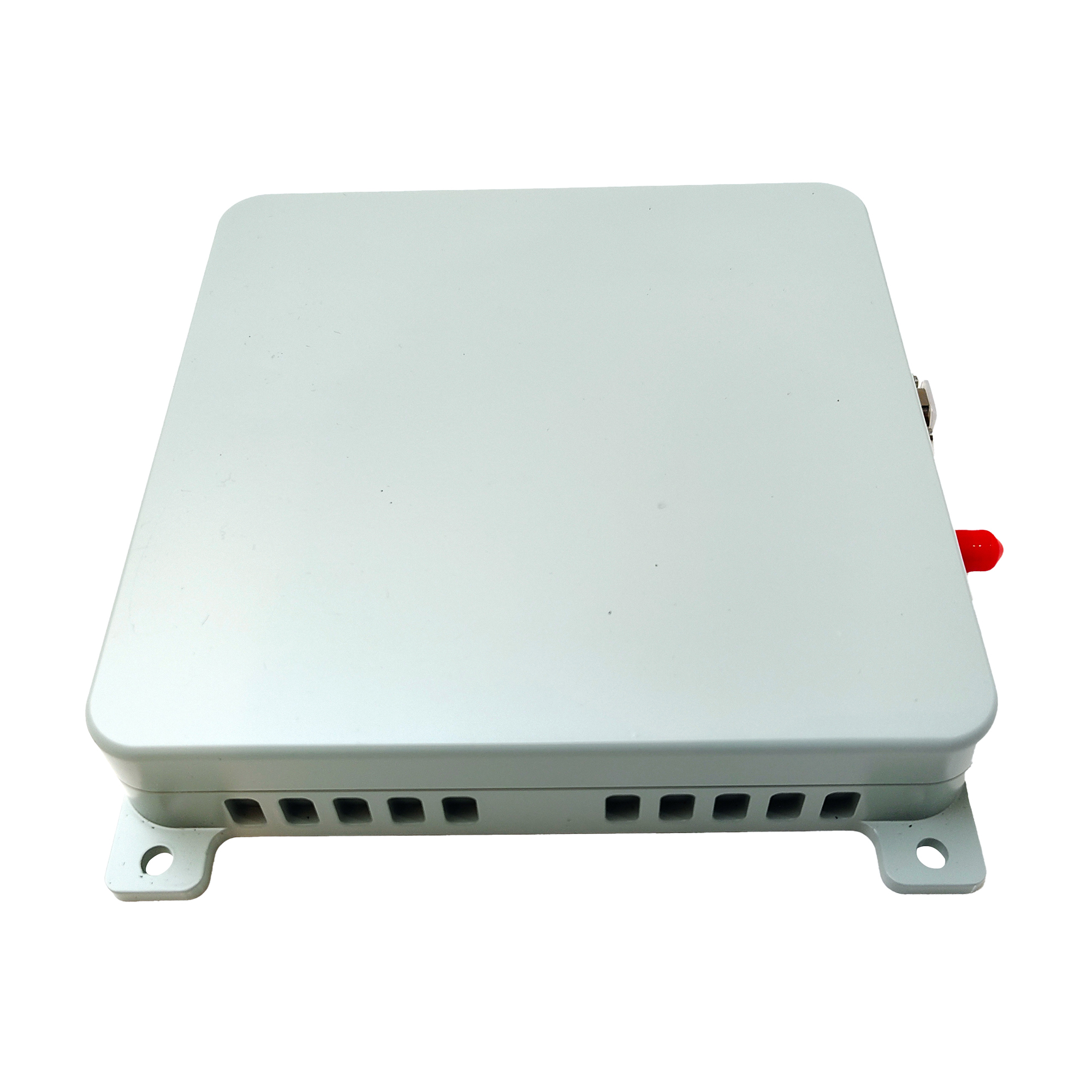

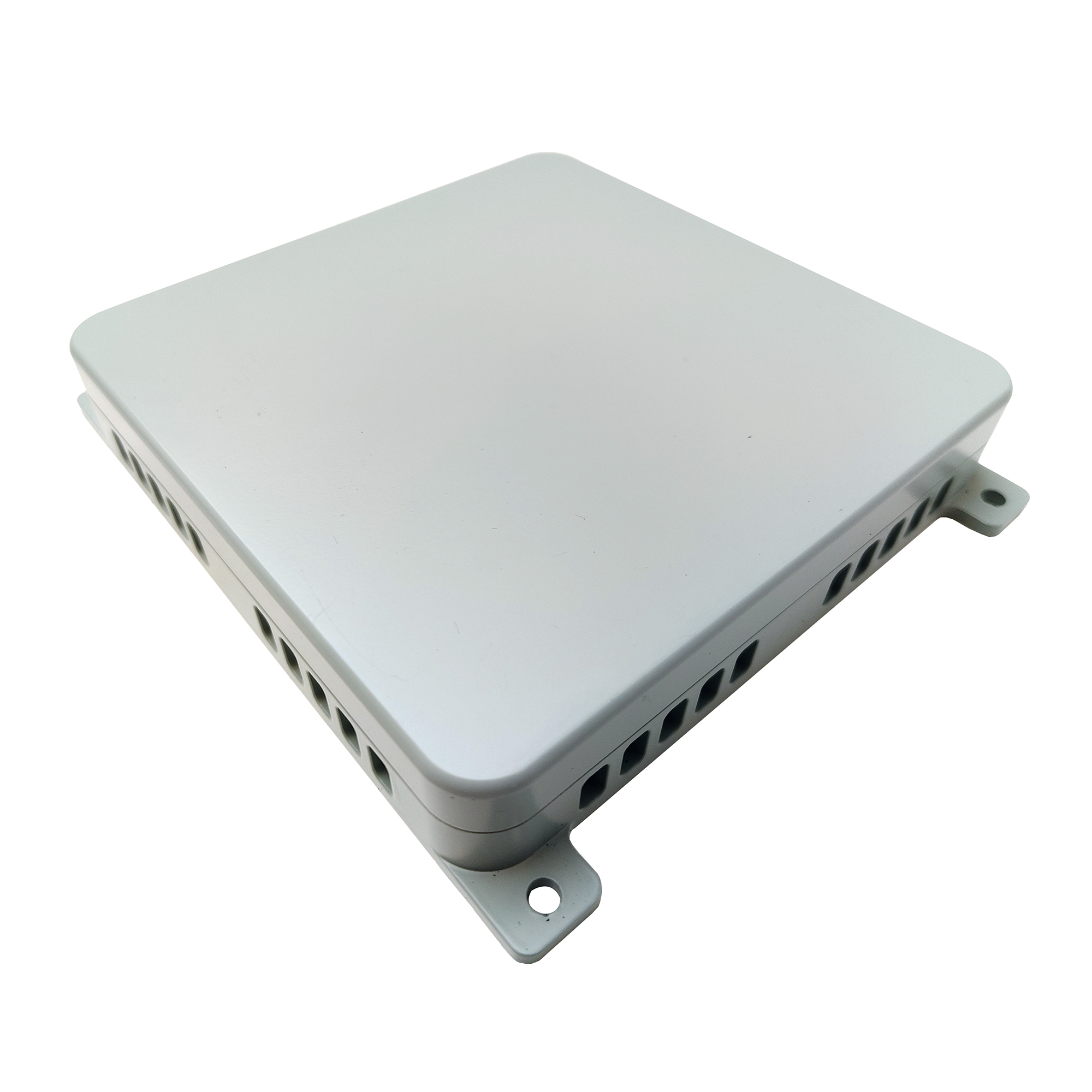

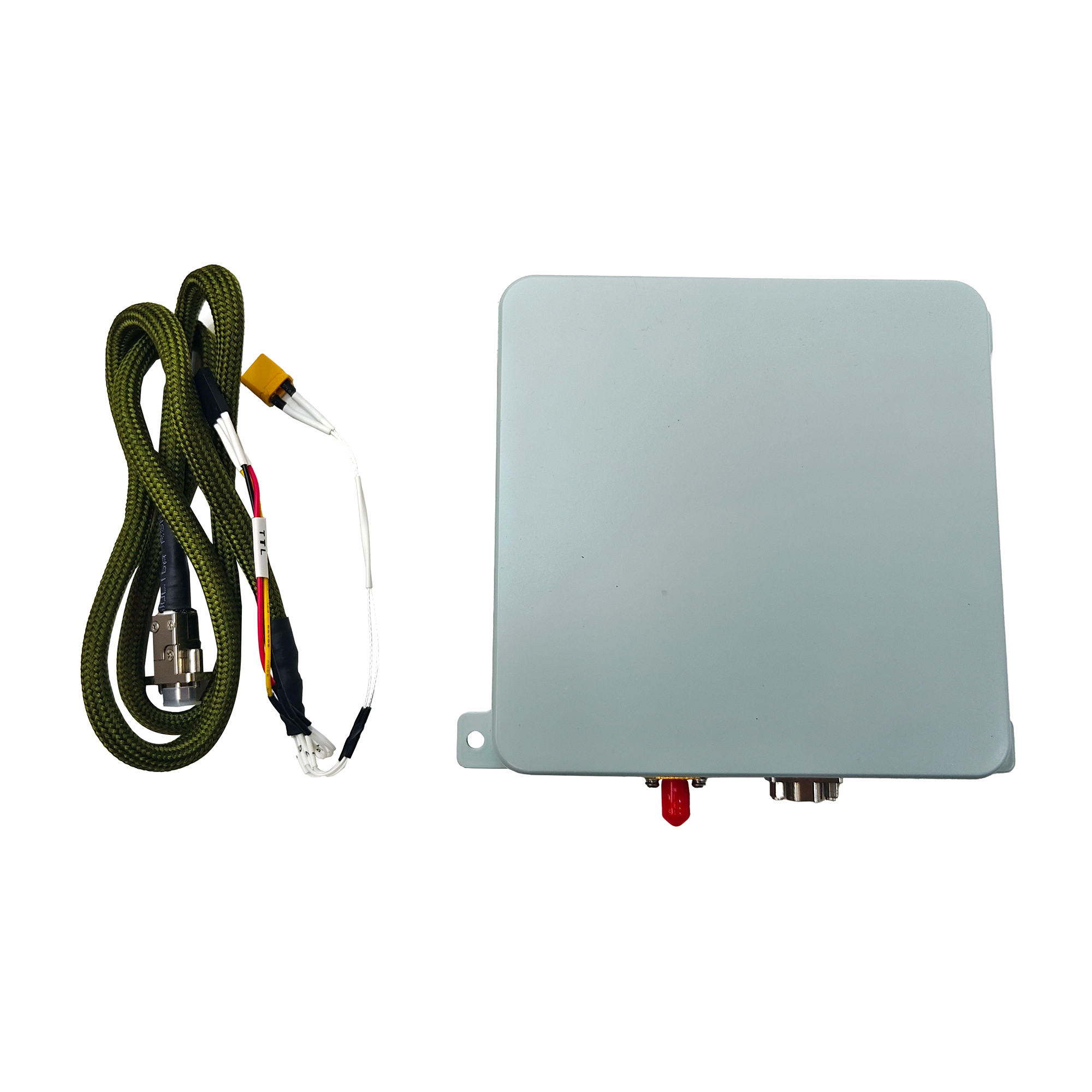

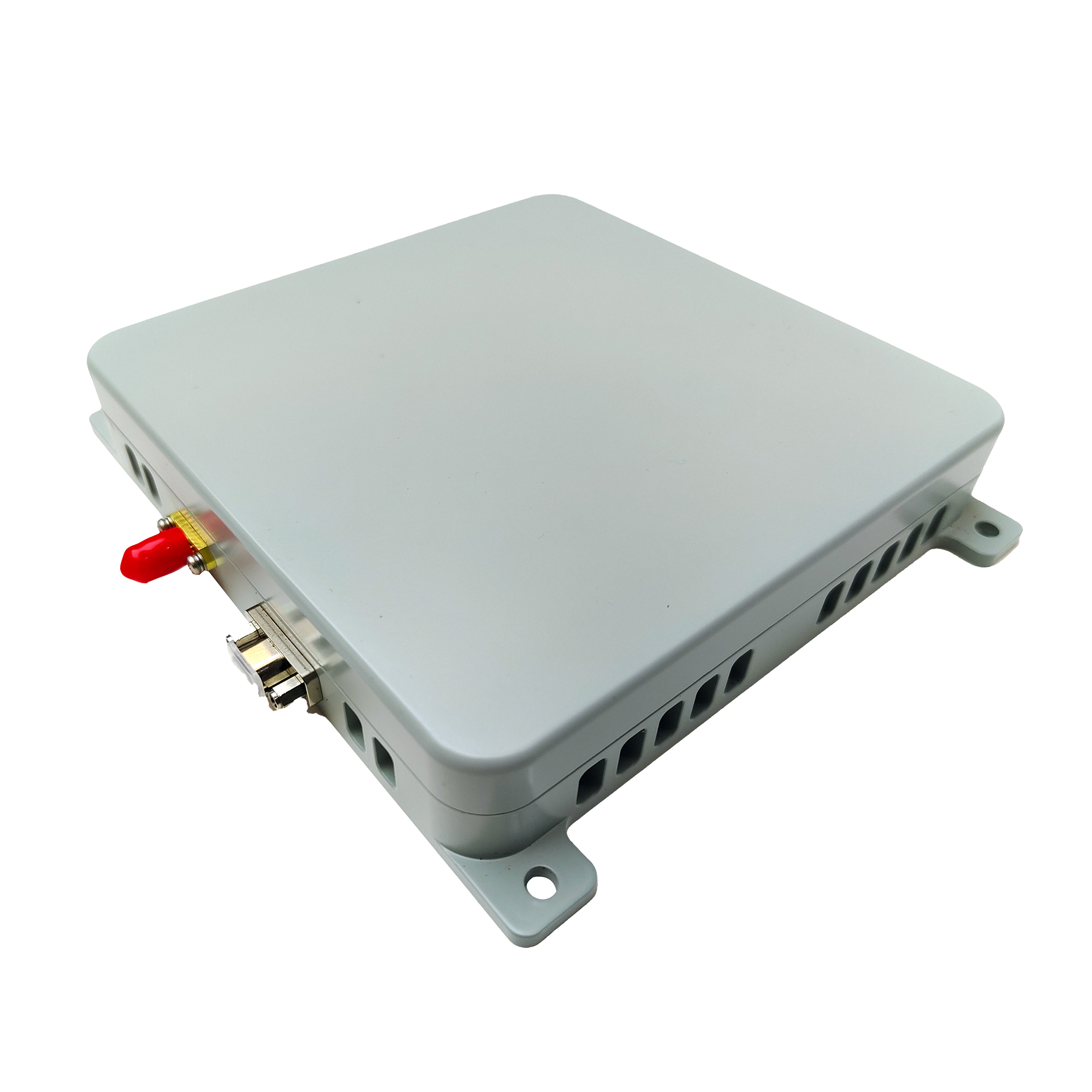

TX-009Pro-8CH-BD-WG-DT 8-Channel Drones Part CRPA Antenna

Core Advantages & Differentiators

Optimized BeiDou-3 Dual-Frequency Wideband Anti-Jamming Performance

This BD TX-009Pro-8CH Antenna is fine-tuned for BeiDou-3 RNSS B1/B3 dual-frequency signals, delivering industry-leading wideband anti-jamming capabilities for BeiDou positioning systems. It can effectively resist up to three primary interference sources, with an interference-to-signal ratio (ISR) of ≥105dBc for a single jamming source and ≥95dBc for three concurrent jamming sources. With full 0°360° azimuth and -90°90° pitch anti-jamming airspace coverage, it maintains stable positioning even in dense urban, industrial, and high-interference field environments.

Fully Integrated All-in-One Design for Simplified Deployment

Unlike split anti-jamming solutions, this unit integrates a 4-element CRPA anti-jamming antenna array, high-performance anti-jamming processing module, and a dedicated BeiDou satellite navigation receiver into a single compact housing. This all-in-one architecture eliminates the need for separate receiver hardware, simplifies system integration, reduces wiring complexity, and minimizes failure points for industrial equipment, accelerating time-to-market for your navigation solutions.

Industrial-Grade Robustness for Demanding Mission-Critical Scenarios

Built to withstand the rigors of industrial field operations, the terminal features a rugged form factor of 150mm × 130mm × 26.5mm, with a weight of ≤500g. It operates on a widely compatible 12V recommended input voltage, delivering stable RF output with an in-band power of -70~-60dBm and 50 ohms output impedance, ensuring seamless compatibility with mainstream industrial control systems and BeiDou application platforms.

Common Questions

Is the TX-009Pro-8CH-BD-WG-DT an upgraded model?

Yes, it is the upgraded iteration of the TX-009-8CH-BD-WG-DT, with optimized anti-jamming performance, enhanced integration, and improved reliability for BeiDou-3 positioning applications.

What BeiDou signals does this anti-jamming unit support?

It supports dual-frequency reception of BeiDou-3 RNSS B1 and B3 signals, optimized for high-precision, high-reliability BeiDou positioning operations.

Does this unit include an integrated satellite navigation receiver?

Yes. It integrates an internal antenna array, anti-jamming processing components, and a dedicated BeiDou satellite navigation receiver into a single all-in-one device, eliminating the need for separate receiver hardware.

Get a Custom Solution for Your Industrial Project

Whether you are a BeiDou application integrator, industrial equipment manufacturer, or professional drone operator, our team can deliver a customized GNSS navigation anti-jamming solution tailored to your BeiDou-based industrial project needs. Reach out today to request a full technical datasheet, discuss custom development options, or inquire about bulk pricing for your large-scale deployment.
