Commercial UAV operators, defense contractors, and critical infrastructure managers face a rapidly growing invisible threat in the skies. Malicious actors now easily disrupt airspace using cheap, commercially available software-defined radios. Basic jamming simply blocks signals, making the attack obvious and easy to detect. Spoofing acts much differently, maliciously feeding receivers false positioning and timing data in complete silence. This deceptive attack forces catastrophic drone flyaways or hijacked flight paths without triggering any immediate system alarms.
You must understand how modern defense systems actually function to ensure operational survivability. We will strip away the marketing hyperbole to examine algorithmic anomaly detection and advanced spatial filtering hardware. You will learn how to evaluate and select reliable solutions capable of protecting assets in the most hostile, high-interference environments.
Spoofing vs. Jamming: While jamming denies service, spoofing silently hijacks it. Effective defense requires entirely different detection and mitigation architectures.
Multi-Layered Defense: Modern anti-spoofing relies on a combination of algorithmic anomaly detection (software) and spatial filtering (hardware).
The CRPA Advantage: Controlled Reception Pattern Antennas (CRPA) remain the gold standard for physical threat mitigation, creating spatial nulls to blind the receiver to malicious signals.
Evaluation Reality: Choosing the right anti-spoofing technology requires balancing SWaP-C (Size, Weight, Power, and Cost) constraints against the required threat-level protection for specific UAV or navigation payloads.
Standard GNSS receivers inherently trust any incoming signal. They blindly accept data as long as it matches the expected satellite format and frequency. This blind trust makes traditional receivers highly vulnerable to GNSS spoofing. Attackers increasingly use commercially available Software Defined Radios (SDRs) to broadcast counterfeit satellite signals.
The mechanics of a spoofing attack are subtle. An attacker does not immediately overwhelm the receiver with massive power. Instead, the spoofer slowly overpowers the legitimate signal using only a slight power advantage. Once the receiver locks onto this counterfeit signal, the attacker manipulates the timing code. They gradually drift the receiver's calculated position away from reality. You will likely notice no sudden alarms or immediate system failures.
This silent hijacking directly corrupts UAV flight controllers. A drone relying on corrupted positioning data will make unintended course corrections. You will instantly lose autonomous return-to-home (RTH) capabilities. In severe scenarios, attackers force drones into restricted zones or trigger forced landings in hostile territory. Reliable Drone nevigation demands more than a basic GPS module to survive these environments.
A viable defense solution must meet strict success criteria. It must identify the anomaly accurately. It must actively filter the malicious signal out of the RF environment. Crucially, it must maintain an authentic position, navigation, and time (PNT) lock without causing unacceptable latency.
Note: While cybersecurity experts often use the term "spoofing" for biometric or voice manipulation, we focus strictly on RF and GNSS threats targeting physical operations and navigation hardware.
Modern defense systems require a deep understanding of physics and signal behavior. They deploy sophisticated anti-spoofing tecnology to separate genuine orbital signals from terrestrial fakes.

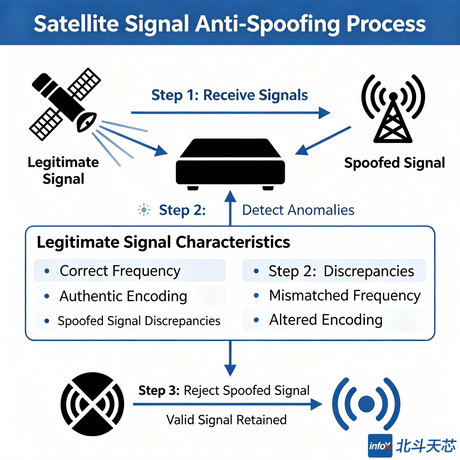

Software algorithms monitor the RF environment for impossible physics. Genuine satellite signals travel roughly 20,000 kilometers. They arrive at your receiver incredibly weak. When a spoofer attacks, they generate anomalies.
Automatic Gain Control (AGC) Monitoring: Receivers use AGC to amplify faint satellite signals. If the required signal attenuation suddenly spikes, it indicates a strong terrestrial source. Algorithms flag these unnatural power jumps as spoofing attempts.
Signal Quality and Doppler Monitoring: Satellites orbit the earth at immense speeds, creating predictable Doppler shifts. Algorithms continuously check incoming signals against known orbital mechanics. If a signal shows an impossible Doppler shift, the system instantly identifies it as counterfeit.
Time of Arrival (ToA) Inconsistencies: Legitimate signals arrive from multiple distinct orbital trajectories. Counterfeit signals usually originate from a single terrestrial SDR. If multiple satellite signals arrive perfectly synchronized from one physical point, algorithms recognize the attack.
Standalone GNSS data carries inherent risk. Advanced systems use sensor fusion to validate GNSS inputs against independent onboard sensors. They heavily rely on Inertial Measurement Units (IMUs), odometry, or visual sensors.
Consider a practical example. The GNSS data might claim the UAV is accelerating at 50 meters per second. However, the onboard IMU detects absolutely zero physical acceleration. The system immediately flags a spoofing event. It stops trusting the GNSS feed and switches to dead reckoning using IMU data.
Best Practice: When evaluating software-only solutions, explicitly ask the vendor for false-positive rates. Dense urban environments bounce signals off buildings. Overly sensitive algorithms mistake these multipath reflections for attacks, causing unnecessary navigation dropouts.
Software algorithms face a hard ceiling. Software can only detect an attack. To actually mitigate the threat and maintain live navigation, you need specialized hardware. You cannot clean a noisy physical RF environment with code alone.
An Anti-spoofing CRPA (Controlled Reception Pattern Antenna) represents the gold standard in hardware defense. It moves beyond passive reception to actively sculpt the RF landscape.
Direction of Arrival (DoA) Processing: A CRPA features multiple distinct antenna elements. When a signal hits the array, it reaches each element at a slightly different microscopic time. The system compares the phase of incoming signals across these elements. It mathematically pinpoints the exact physical direction of the spoofing source.
Null Steering: Once the system identifies the attacker's location, it dynamically alters its own reception pattern. It creates a deep spatial "blind spot" (a null) aimed directly at the spoofer. Simultaneously, it maintains high gain toward legitimate satellites overhead. The receiver simply stops "hearing" the attacker.
Attackers rarely use single tactics. They usually deploy complex, multi-stage attacks. First, they use broadband jamming to blast the receiver with noise. This forces the receiver to drop its legitimate GNSS lock. Immediately after, they launch a spoofing signal. The disoriented receiver attempts to reacquire any valid signal and mistakenly locks onto the fake one.
This reality requires a Dual-anti-function approach. You need a dedicated anti-jamming and anti-spoofing antenna to survive. The best hardware handles both threats simultaneously. It filters out the raw power of jammers while simultaneously nulling the deceptive structure of spoofers.
Defense Layer | Primary Function | Limitations |
|---|---|---|
Software (Algorithms) | Detects unnatural physics, power spikes, and data inconsistencies. | Cannot remove malicious signals from the RF environment. |
Hardware (CRPA) | Creates physical blind spots to silence terrestrial attackers. | Heavier, consumes more power, requires multi-element arrays. |
Sensor Fusion | Cross-references GNSS with physical motion (IMU). | IMU data drifts over time; cannot provide absolute global position alone. |
Modern multi-element CRPA systems provide critical spatial filtering to defeat advanced spoofing attacks.
Selecting the right defense for UAV protection requires ruthless pragmatism. You cannot evaluate hardware based on data sheets alone. You must align physical constraints with mission requirements.
Every feature carries a cost in weight or processing time. You must map these features to direct operational outcomes.
Mission Requirement | Hardware Feature | Operational Outcome Needed |
|---|---|---|
High-dynamic flight maneuvers | High-speed DoA processing | Fast reacquisition times and low-latency null steering updates. |
Urban operations | Advanced multipath mitigation | Avoid dropping legitimate signals bounced off buildings. |
Hostile RF environments | Multi-element nulling | Ability to defeat 3+ simultaneous terrestrial jammers/spoofers. |
Engineers live and die by SWaP-C limits (Size, Weight, Power, and Cost). You must carefully discuss the trade-offs between different array types. A highly effective 7-element CRPA provides incredible defense. It forms multiple simultaneous nulls. However, it is heavier and demands high power consumption. This makes it ideal for critical infrastructure or large fixed-wing aircraft.
Conversely, a 4-element CRPA is much lighter. It consumes less battery life. This form factor perfectly suits smaller tactical UAVs where every gram heavily impacts flight duration.
Assess exactly how the technology integrates into your existing fleet. Can you retrofit the module? Many modern systems act as standalone inline modules. They sit comfortably between your existing passive antenna and the receiver. Other solutions require deep, complex integration directly into an OEM flight controller.
When shortlisting vendors, apply strict logic. Rule out systems offering only basic power-monitoring features. If you operate in known hostile RF environments, prioritize solutions featuring true spatial processing and Direction of Arrival capabilities.
Common Mistake: Procurement teams often buy heavy, complex defense systems for small commercial drones. Prioritize "plug-and-play" inline modules to upgrade your defense quickly without replacing proprietary navigation stacks.
Deploying advanced defense mechanisms introduces specific engineering friction. You cannot simply bolt an antenna onto a drone and expect invulnerability. Real-world implementation requires careful planning.
Legacy receivers often struggle with modern defense hardware. Older navigation modules lack the necessary bandwidth. They simply cannot process advanced RF metadata generated by complex antenna arrays. You might need to upgrade both the antenna and the core receiver to achieve true dual-function capabilities.
Urban canyons and complex mountain terrains create nightmares for RF engineers. Large physical structures bounce legitimate satellite signals. These reflected signals hit the receiver from terrestrial angles. They mimic the exact physical behavior of a ground-based spoofer.
This creates a severe risk. The defense system might accidentally form a null against a valid, reflected signal, starving the receiver of data. Top-tier hardware utilizes advanced terrain masking algorithms to compensate for this effect. They learn the environment to distinguish between a bounced orbital signal and a malicious terrestrial SDR.
You cannot legally test spoofing equipment in open airspace. Doing so violates strict federal communication laws and endangers civilian aviation.
You must rely on controlled environments. Highlight the necessity of isolated RF anechoic chambers. Engineering teams must use hardware-in-the-loop setups alongside high-end GNSS simulators. You must prove efficacy virtually before deploying any asset into real-world hostile zones.
Modern defense technology has evolved far beyond simple signal-strength checks and basic power monitoring. Today, securing drone navigation and critical infrastructure demands a robust, multi-layered architecture. You need algorithmic cross-checking to detect anomalies instantly. Crucially, you need spatial filtering hardware, like a CRPA, to physically alter the RF landscape and silence attackers.
The threat environment remains highly dynamic. Attackers continually refine their software-defined radios to broadcast incredibly convincing counterfeit signals. Passive reliance on standard GPS modules guarantees failure in contested airspace.
Your next steps require immediate action. Audit your current navigation payloads to identify vulnerabilities. Define your strict SWaP-C allowances based on payload capacity and power budgets. Finally, demand transparent, simulator-backed performance data from potential vendors before finalizing any hardware investments.
A: Anti-jamming primarily focuses on filtering out high-power noise designed to deafen the receiver. Anti-spoofing must identify and neutralize deceptive, structurally valid signals that are trying to trick the receiver. Many modern CRPA systems offer dual-anti-function capabilities to handle both.
A: Software can effectively detect a spoofing attack by identifying anomalies in signal physics or cross-referencing IMU data. However, software alone cannot clean the physical RF environment. To maintain an actual GNSS lock during an attack, hardware-level spatial filtering (like a CRPA) is required.
A: Advanced hardware filtering (null steering) occurs at the RF/analog level and adds negligible latency. However, heavy software-based sensor fusion algorithms can introduce slight processing delays, which must be accounted for in high-speed UAV flight controller tuning.
A: Anti-spoofing hardware requires multiple antenna elements and robust processing units. For small to medium UAVs, every gram of weight and watt of power drawn reduces flight time and payload capacity, making Size, Weight, Power, and Cost (SWaP-C) the deciding factor in vendor selection.
