Anti-Jamming Antenna Guide For GNSS Security And Reliability

Views: 0     Author: Site Editor     Publish Time: 2026-04-20      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button

Global reliance on GNSS has created a massive target for disruption. Recent high-profile disruptions in critical infrastructure, commercial aviation, and UAV operations prove a stark reality. RF interference is no longer an isolated military concern. Today, malicious signal manipulation threatens logistics networks, agriculture, and emergency response teams globally.

Legacy systems rely heavily on standard omnidirectional receivers. They are inherently vulnerable because they absorb environmental noise and deliberate interference equally. These basic receivers simply cannot distinguish between true satellite data and malicious ground-level attacks. When confronted with overpowering noise, they fail completely.

This guide serves as a pragmatic roadmap for modernizing your defense. You will learn how to evaluate, select, and integrate an anti-jamming antenna based on operational constraints. We will explore threat profiles, active spatial filtering, and SWaP realities to keep your navigation secure. Protecting your position, navigation, and timing data requires deliberate action.

Key Takeaways

  • The "Die vs. Lie" Threat Paradigm: Jamming blocks signals (causing the receiver to "die"), while spoofing feeds false data (causing the receiver to "lie"). Modern antennas must mitigate both.

  • Active Defense Over Passive Reception: Advanced systems utilize Controlled Reception Pattern Antennas (CRPA) to steer beams toward satellites and create "nulls" (deaf spots) toward interference sources.

  • The Mathematics of Defense: The number of interference sources a system can simultaneously suppress is directly tied to its array configuration (the $N-1$ rule).

  • SWaP Dictates Viability: For UAVs and mobile assets, a compact anti-jamming terminal that balances robust defense with stringent Size, Weight, and Power (SWaP) limits is the primary evaluation metric.


The GNSS Threat Landscape: Why Standard Antennas Fail

Understanding the exact nature of navigation warfare is the first step in building a resilient system. Adversaries deploy various methods to degrade or hijack satellite signals. You must recognize these tactics to deploy effective countermeasures. Broadly, these attacks fall into two distinct categories: denial of service and data falsification.

Defining the Threat Types

  • Jamming: This is a brute-force approach. Attackers overpower the receiver with sheer RF noise. They often use Continuous Wave (CW) emissions or narrowband interference targeted precisely at GNSS frequencies. The goal is to drown out the legitimate signal, rendering the receiver blind.

  • Spoofing & Meaconing: This is a more insidious threat. Instead of blocking the signal, attackers trick the receiver with forged or delayed data. Spoofing involves generating fake satellite signals to alter the calculated position or time. Meaconing involves recording legitimate GNSS signals and rebroadcasting them with a slight delay, causing profound confusion in timing networks and autonomous navigation.

The Asymmetry of GNSS Signals

To understand why these attacks succeed, consider the physical reality of satellite navigation. Satellites broadcast GNSS signals from Medium Earth Orbit, roughly 20,000 kilometers away. By the time these transmissions cross the atmosphere and reach Earth, they are incredibly weak. The signal strength often falls below the ambient thermal noise floor of the environment.

This massive distance creates a severe asymmetry. A cheap, low-power jammer bought online can generate a ground-level signal exponentially stronger than the faint whisper arriving from space. It takes very little power from a local source to completely overwhelm a receiver trying to listen to a distant satellite.

The Standard Antenna Shortfall

Everyday antennas listen equally in almost all directions across the upper hemisphere. They operate passively. Because they have a broad, omnidirectional reception pattern, they cannot differentiate between valid satellite broadcasts from the sky and malicious noise from the ground. When a jammer activates, the standard antenna funnel all that excessive noise directly into the receiver's low-noise amplifier, saturating it instantly. It lacks the physical and electronic mechanisms needed to filter signals based on their spatial origin.

Core Technologies: How an Anti-Jamming Antenna Operates

To survive in contested environments, navigation systems must move away from passive listening. They need intelligent hardware capable of recognizing and rejecting hostile noise in real time. This requires complex phase manipulation and specialized antenna configurations.

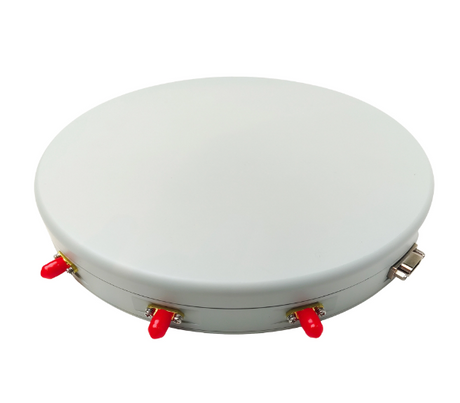

Controlled Reception Pattern Antennas (CRPA)

The industry standard for robust defense is the Controlled Reception Pattern Antenna, or CRPA. CRPAs completely shift the paradigm from a passive omnidirectional listener to an active spatial filter. Instead of accepting all incoming RF energy, a CRPA actively sculpts its reception pattern. It dynamically alters how it hears based on the RF environment, continuously assessing where signals originate and aggressively filtering out anomalies.

The Role of the Array Antenna

A CRPA cannot function with a single radiating element. It relies on an array antenna, which consists of multiple discrete antenna elements arranged in a specific geometric pattern. By capturing incoming signals across slightly different physical locations simultaneously, the system's processor compares the phase differences between the elements to determine the exact direction of incoming RF energy.

The N-1 Rule: This mathematical principle dictates the defensive limits of any array. An array with N individual elements can typically suppress N-1 simultaneous jammers. For example, a 4-element array can handle 3 distinct jamming sources coming from different directions at once. If a fourth jammer appears from a new angle, the system's spatial filtering capacity becomes saturated.

Nulling vs. Beamforming (The Tactical Response)

Once the system identifies the direction of an attack, it deploys two primary tactical responses to preserve the navigation link.

Defense Tactic

Mechanism of Action

Primary Benefit

Adaptive Nulling

Creates an electronic "deaf spot" directed precisely at the jamming source by phase-shifting elements to cause destructive interference.

Highly effective because jammers usually sit at a lower elevation than satellites. The system blocks ground noise without losing sky visibility.

Beamforming

Actively focuses the reception pattern like a spotlight directly at the known trajectory of satellites using constructive interference.

Maximizes the signal-to-noise ratio of legitimate signals, pulling them out of heavy background noise.

These two techniques run concurrently in advanced systems. The antenna continuously calculates optimal weights for each element, deepening nulls toward threats while sharpening beams toward satellites. This ensures continuous operation even when moving rapidly through a dynamic interference zone.

SWaP Optimization and the Compact Anti-Jamming Terminal

While maximizing array elements offers superior mathematical defense, real-world deployment faces strict physical constraints. Integrating these technologies onto modern platforms requires severe engineering compromises.

The Engineering Trade-off

There is an inherent conflict between RF performance and platform limitations. Adding more antenna elements enhances protection, allowing the system to mitigate more simultaneous threats. However, 8-element or 16-element arrays are large, heavy, and power-hungry. This creates a severe problem for Unmanned Aerial Vehicles (UAVs), Unmanned Surface Vehicles (USVs), and agile ground robotics, which simply cannot carry massive payloads.

Defining SWaP (Size, Weight, and Power)

In military and commercial aerospace procurement, SWaP is the ultimate disqualifier. No matter how incredible an antenna's interference rejection is, it will fail procurement if it violates SWaP limits.

  1. Size: The aerodynamic profile must remain minimal to avoid causing drag on UAVs.

  2. Weight: Every additional gram reduces the drone's flight time and reduces its capacity to carry primary sensors like cameras or LiDAR.

  3. Power: Active phase-shifting requires continuous computational power. High power draw drains the platform's battery, drastically shortening mission endurance.

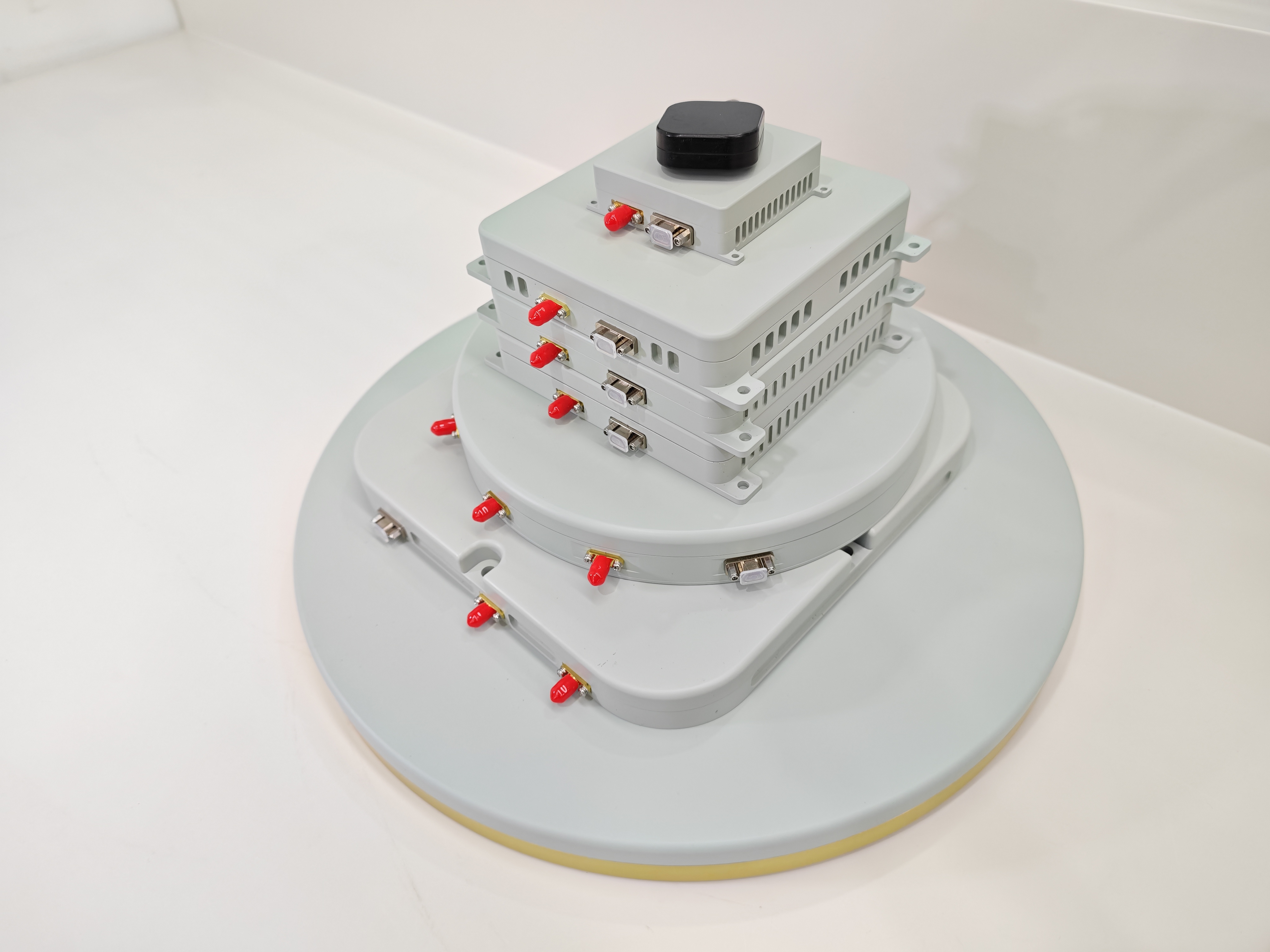

Emergence of the Compact Anti-Jamming Terminal

To resolve these SWaP bottlenecks, the industry has shifted toward miniaturization. The market now favors the compact anti-jamming terminal. These highly optimized 4-element systems provide critical multi-band protection (covering both L1 and L2 frequencies) while maintaining an incredibly small footprint. They weigh mere grams rather than kilograms, making them viable for commercial inspection drones, tactical loitering munitions, and automated logistics networks.

Environmental Hardening

Beyond SWaP, these systems face brutal operating environments. Vendors must engineer terminals to survive extreme conditions. You will typically see strict requirements for IP67 ratings to prevent dust and water ingress. For maritime USVs, salt-fog resistance is non-negotiable to prevent rapid corrosion. Furthermore, ruggedized deployments demand compliance with MIL-STD-810H for shock and vibration, alongside MIL-STD-461F for electromagnetic compatibility. A compact terminal must survive hard landings and extreme weather without degrading its RF shielding.

Multi-Layered PNT Security: Beyond the Antenna

While an intelligent array serves as your most vital shield, relying entirely on one technology introduces unacceptable risk. Modern architecture requires a holistic approach to Positioning, Navigation, and Timing (PNT) security.

No Single Point of Defense

An active CRPA is the critical first line of defense, but it is not a standalone silver bullet. If adversaries deploy an overwhelming number of jammers that exceed the system's N-1 capacity, or if the asset enters a physically denied environment like a deep urban canyon or tunnel, the GNSS signal will drop. You must build secondary fallback mechanisms into your platform.

Integration with Inertial Navigation Systems (INS/IMU)

When GNSS is entirely denied, your system must seamlessly hand over control to an Inertial Measurement Unit (IMU). This process relies on a technique called "Dead Reckoning." The IMU uses accelerometers and gyroscopes to calculate movement and direction from the last known good GNSS coordinate. A tightly coupled INS/GNSS architecture ensures that the platform maintains safe, predictable positioning for minutes at a time, giving it the opportunity to fly out of the interference zone and reacquire the satellite lock.

Advanced Countermeasures

To combat advanced spoofing, operators are increasingly layering software-level defenses behind their hardware. Navigation Message Authentication (NMA) allows the receiver to cryptographically verify that the signal truly originated from a satellite and has not been altered. Furthermore, multi-constellation redundancy ensures that if the GPS band is jammed, the receiver can automatically pivot to Galileo, GLONASS, or BeiDou signals, multiplying the effort required by an attacker to successfully blind the asset.

The Procurement Framework: Selecting the Right Solution

Purchasing the right RF defense requires aligning the hardware specifications with your exact operational reality. Deploying an oversized system wastes payload capacity, while deploying an undersized one leaves critical assets vulnerable. Use this logical framework to evaluate your options.

Step 1: Define the Threat Profile

Start by identifying the most likely adversary your asset will face. Are you protecting urban delivery drones against low-power, commercially bought GPS jammers often used by delivery drivers to hide their locations? Or are you deploying tactical assets near borders where sophisticated, multi-directional electronic warfare systems operate? Understanding whether you face accidental interference, single-source jammers, or coordinated, multi-node attacks dictates the level of spatial filtering you require.

Step 2: Match Array Size to Asset Type

The physical platform dictates your maximum array size. You must respect the SWaP limitations of your specific asset.

  • Fixed Critical Infrastructure: Cell towers, power grid timing centers, and stationary radar stations lack stringent weight limits. They demand heavier, 8-element or even 16-element arrays to provide impenetrable, multi-directional defense against sophisticated spoofing.

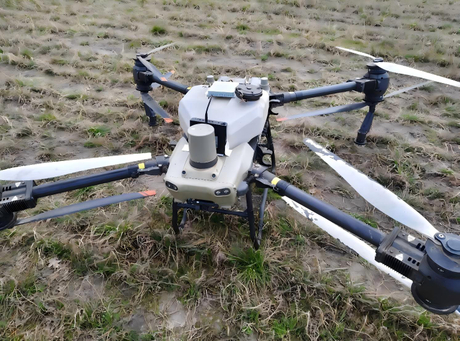

  • Dynamic/Mobile Assets: UAVs, ground robots, and autonomous agricultural equipment require nimble, SWaP-optimized hardware. A 4-element beamforming system offers the ideal balance, providing rapid nulling against ground threats without crippling the platform's agility.

Step 3: Assess System Compatibility

Hardware must interface smoothly with your existing flight controllers and receivers. Look for "plug-and-play" integration. The system should utilize standard RF connectors (like SMA or TNC) and interface cleanly via serial or Ethernet connections. Furthermore, evaluate latency. Active phase calculation takes time. You must ensure the processing delay introduced by the CRPA does not desynchronize your tightly coupled INS algorithms. Modern units keep this latency to mere microseconds.

Common Mistakes in Procurement

  • Ignoring the physical placement of the unit on the drone, causing the drone's own carbon fiber body to block satellite visibility.

  • Failing to ensure the CRPA and the downstream receiver support the exact same multi-constellation bands (e.g., L1/L2/L5).

  • Overlooking thermal management. Compact processors generate high heat during continuous nulling calculations; proper heat dissipation is vital for sustained missions.

Conclusion

In an increasingly congested and contested RF environment, relying on unprotected GNSS is an unacceptable operational risk. From accidental interference to malicious electronic warfare, the threats facing global navigation networks are evolving rapidly. Passive receivers no longer provide the assurance needed for autonomous operations, critical infrastructure timing, or safe aviation.

The right solution balances the mathematical realities of array elements with the physical constraints of SWaP. You must deploy intelligent systems capable of actively sculpting their reception patterns to silence ground noise while amplifying true satellite signals.

  • Audit your current PNT vulnerabilities to understand how your assets behave under severe interference.

  • Define your threat profile to determine if you need a nimble 4-element system or a massive infrastructure-grade array.

  • Prioritize tight integration between your active RF defense and secondary sensors like IMUs.

  • Consult with an integration specialist to review compact terminal specifications for your specific UAV or mobile platform.

FAQ

Q: What is the difference between a standard antenna and an anti-jamming antenna?

A: A standard antenna uses passive omnidirectional listening, absorbing all RF energy equally from the environment. It cannot tell the difference between satellite signals and ground noise. An anti-jamming system uses active spatial filtering. By processing signals through multiple elements, it determines the direction of interference and creates electronic "deaf spots" (nulls) toward jammers while focusing reception (beamforming) on true satellites.

Q: How many jammers can an anti-jamming antenna block?

A: This depends on the mathematical $N-1$ rule, where $N$ represents the number of elements in the array. A typical compact 4-element array can suppress up to 3 simultaneous jammers coming from different directions. Larger 8-element systems can block up to 7 separate interference sources.

Q: Can an anti-jamming antenna protect against GNSS spoofing?

A: Yes, but with limitations. They primarily defeat brute-force RF power jamming via spatial filtering. However, advanced CRPAs can mitigate certain spoofing attacks by recognizing anomalous signal arrival angles—such as satellite signals coming from the ground instead of the sky. For total spoofing defense, hardware must be paired with software-level Navigation Message Authentication (NMA).
